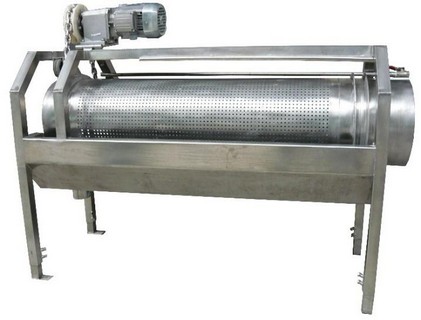

INTESTINE SEPARATOR


TYPE: SJ-1




The separator is used to separate the water from the intestines after the gutting process.

OPERATION

The separator is installed in a place allowing the direct entry of the intestines into the inside of the rotating separating sieve. The intestines are moved by the internal spiral of the sieve towards the outlet. At the same time, the water fed to the separator along with the intestines and holes in the perforated sheet is poured into the gutter and flows down the drain pipe to the sewer. Separated intestines are pneumatically transported further to the slaughterhouse waste department. The sieve is driven by a special chain transmission.

TECHNICAL SPECIFICATION

Installed power 0,37 kW
Voltage 3 x 230 V – 420 V ; 50 Hz
Rotation of the separation sieve 13 RPM
Weight 96 kg
