FEATHER AND WASTE SEPARATOR

Contact us to inquire about this product

If you would like to learn more about the offer or check availability, please contact our sales department:

📞 Phone: +48 (44) 647 61 74
👉 Extension numbers: 222, 223, 225
📧 E-mail: sales@szlachetstal.pl

You can also use the form below — our advisors will respond to your inquiry as quickly as possible.

Fill in the form

Product description

The separator is used to separate feathers and waste from wastewater. Due to the application and the type of handling of the elements inside the screen, two separate devices must be used for the separation of waste and feathers.

OPERATION

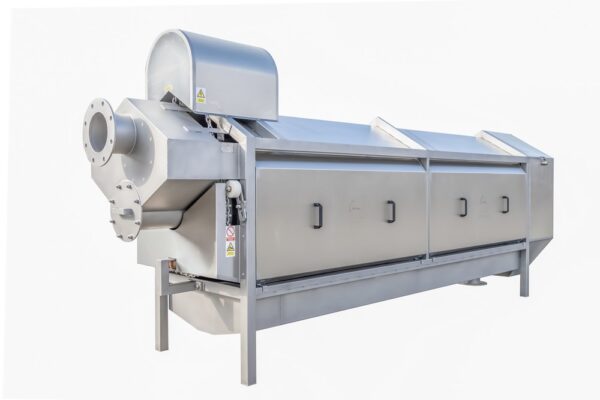

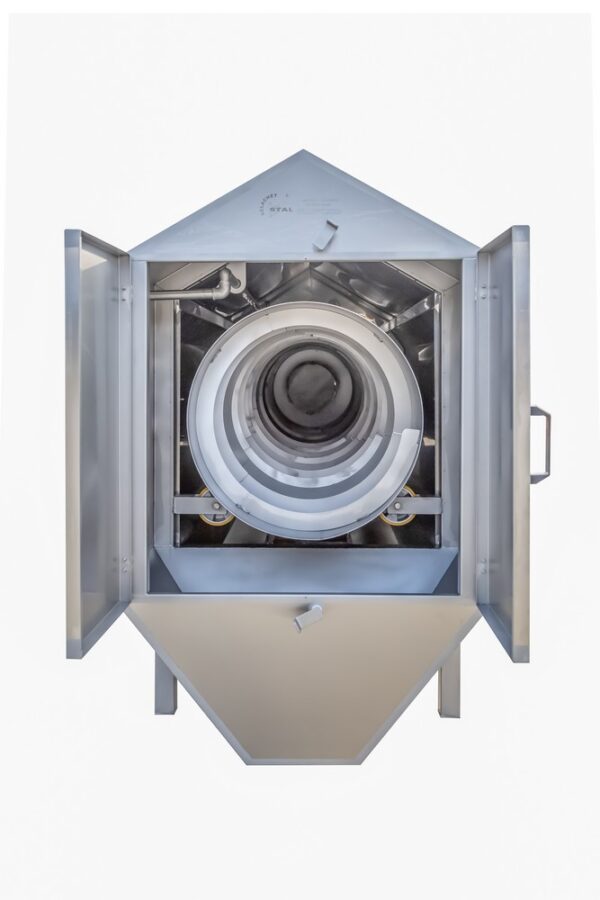

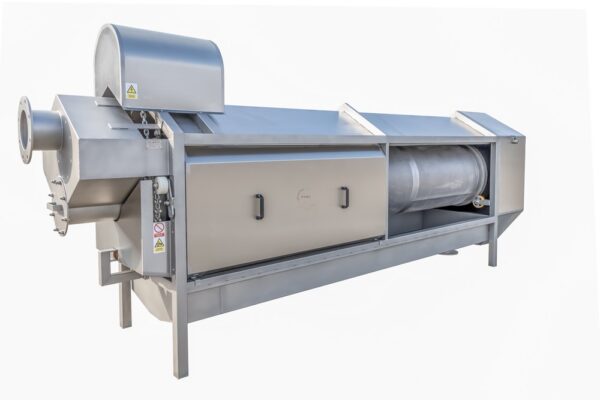

The basic unit of the separator is a trough-shaped body containing a cylindrical sieve in a horizontal position, mounted on rollers. In the lower part of the body there is a drip tray, the drive is installed in the upper part – when actuated, it rotates the cylindrical sieve. Waste or feathers are fed into the sieve, where they are separated from the water and move to the outlet. A scrubber is installed above the screen.

ADVANTAGES

-High efficiency of medium/liquid separation
-Maintenance-free

TECHNICAL DATA

Throughput pcs./h up to	3000	5000	9000
Drum diameter Ø mm	640	640	640
Total length mm	3500	4500	5700
Height mm	2035	2185	2300
Installed power kW	0,75	1,1	2,2
