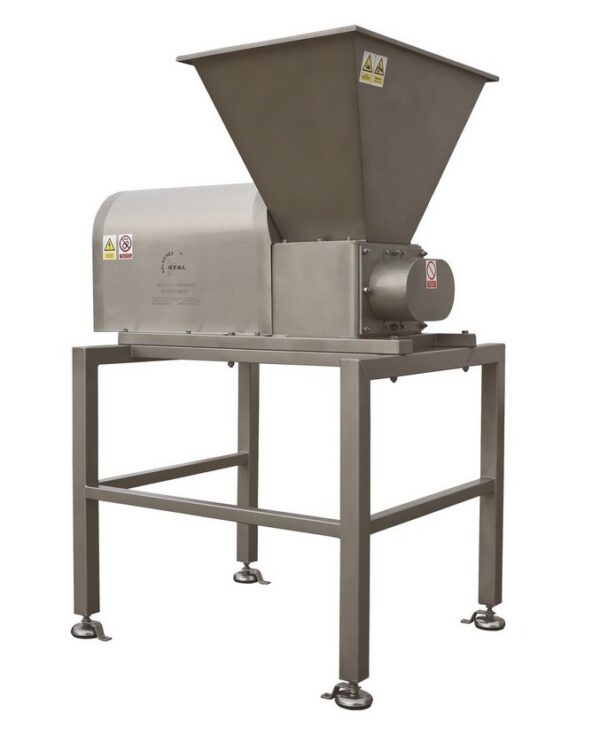

BONE AND FOOT GRINDER

Contact us to inquire about this product

If you would like to learn more about the offer or check availability, please contact our sales department:

📞 Phone: +48 (44) 647 61 74
👉 Extension numbers: 222, 223, 225
📧 E-mail: sales@szlachetstal.pl

You can also use the form below — our advisors will respond to your inquiry as quickly as possible.

Fill in the form

Category: Slaughterhouse waste

Product description

Bone and foot grinder is used to break up bones or paws in order to adapt this waste to pneumatic transport.

OPERATION

Elements destined to crush, (paws – unhooked directly from the overhead conveyor) fall or are thrown manually
(bones) into the charging hopper and are directed between the rotating gears of the breaking mechanism, and
the crushed ones are transported from the collection hopper to their destination.

ADVANTAGES

Easy- to- use
Reliable in operation

TECHNICAL SPECIFICATION

Installed power	4 kW- paws 7 kW- turkeys paws and bones
Voltage	3 x 380 – 420 V
Rotation of breaking mechanism	118 rpm
Grinder weight ( without drain funnel)	185 kg
Capacity	3000 kg/h – RK-1

Additional information

Obroty mechanizmu łamiącego	118 rpm
Moc zainstalowana	4 kW- paws 7 kW for bones and turkey paws
Napiecie	3 x 380- 420 V
Waga Rozdrabniacza ( Bez Lej	185 kg
Wydajność	3000 kg/h – RK-1
