FEATHER TRANSPORT PUMP

Contact us to inquire about this product

If you would like to learn more about the offer or check availability, please contact our sales department:

📞 Phone: +48 (44) 647 61 74
👉 Extension numbers: 222, 223, 225
📧 E-mail: sales@szlachetstal.pl

You can also use the form below — our advisors will respond to your inquiry as quickly as possible.

Fill in the form

Product description

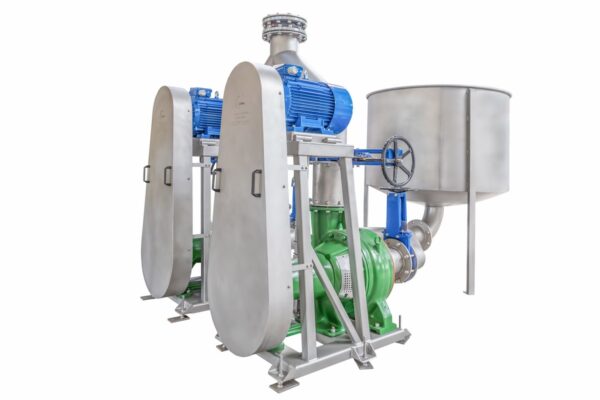

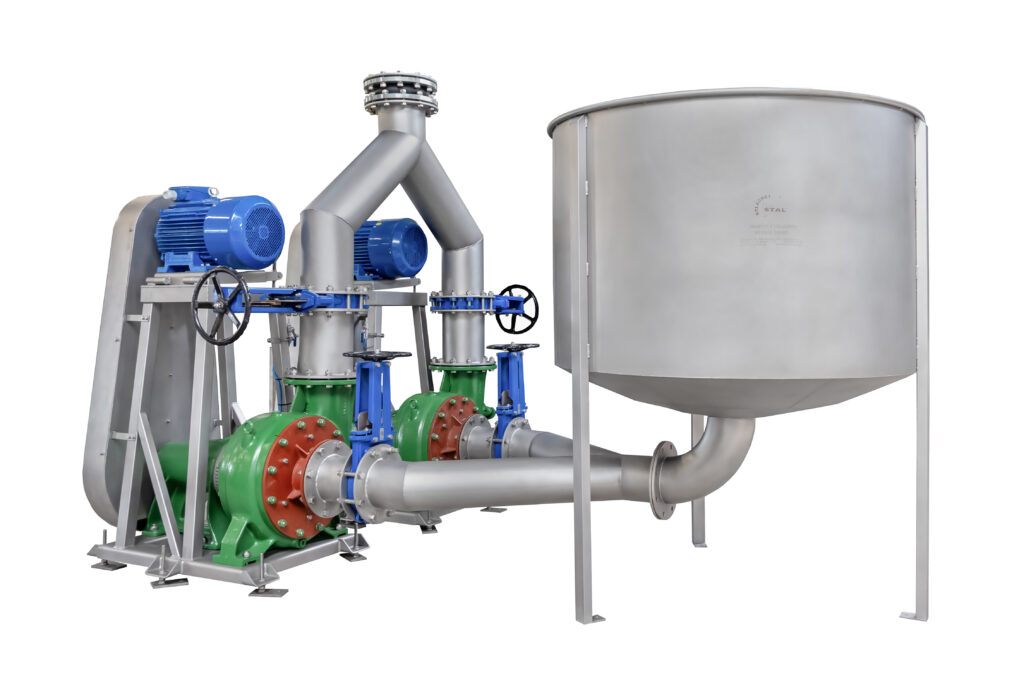

The feather pump is used to transport feather from the poultry plucking process in slaughter plants. Feathers
must be transported with the water.

OPERATION

The basic element of the construction is a single-stage centrifugal pump with a motor. A one-sided, free-flow impeller has vanes arranged on a disc. The rotor disk is moved away from the flow space into a cavity formed in the pump housing, which further widens the free flow space between the blade edges on the rotor face and the housing insert. The pump for transporting feathers can be mounted to existing concrete or steel tanks, as well as with a free-standing tank, which can be delivered with a pump. Feathers with water are transported to the tank, usually through a sewer, and then by a pump, through a pipeline with a diameter of Ø125 – Ø250 (depending on the type of pump), it is transported to the feather separator, where the water is initially separated from feathers.

TECHNICAL SPECIFICATION

Pump model	RZ-125	RZ-150	RZ-250
Installed power	7.5 kW	11 kW	22 kW
Raising height	22-30 m	20-28 m	44-51 m
Capacity	140-270 m³/h	160-290 m³/h	228-612 m³/h
