THREE-ROW TURKEY BEAM PLUCKER

Contact us to inquire about this product

If you would like to learn more about the offer or check availability, please contact our sales department:

📞 Phone: +48 (44) 647 61 74
👉 Extension numbers: 222, 223, 225
📧 E-mail: sales@szlachetstal.pl

You can also use the form below — our advisors will respond to your inquiry as quickly as possible.

Fill in the form

Category: KILLING AND PLUCKING EQUIPMENT

Product description

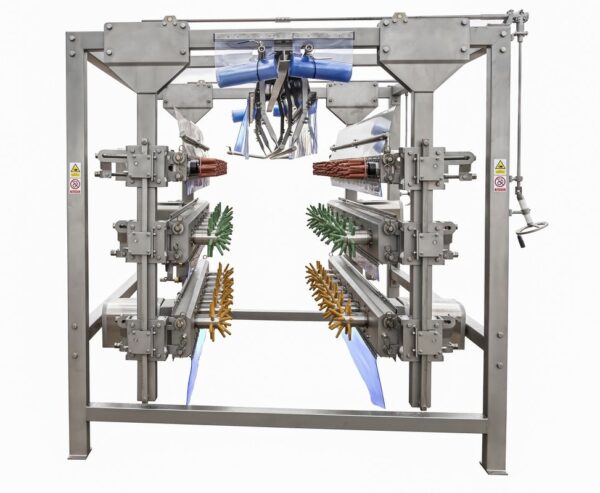

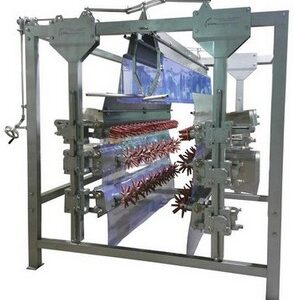

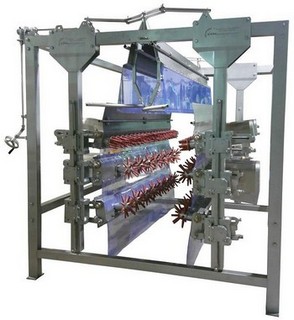

The linear beam plucker is used to remove feathers from the carcass of a hen turkey or a tom turkey.

OPERATION

Basic elements of the plucking machine’s construction are: a frame with posts (4 pcs.), 3 beams on both sides – symmetrically suspended on 2 posts. Two opposite upper beams are equipped with flat heads on which rubber fingers are mounted. The remaining beams are fitted with spatial heads. Horizontal adjustment of the beams is carried out using a system of levers and a worm gear driven electrically or manually. Vertical adjustment of column-mounted beams is carried out by means of worm gears and a vertical toothed bar mounted on the poles (there are 3 gears on one bar). The poultry, suspended on stirrups, is fed in between the rotating plucking discs by a chain conveyor. Both the angle of the beams and the distance of the rubber fingers from the plucked poultry are adjustable.

ADVANTAGES

Wide range of applications
Possibility of vertical adjustment of the plucking beams position
Possibility of adjusting the beam inclination angle and the distance between the plucking fingers and the processed bird carcass

TECHNICAL SPECIFICATION

Plucking length	2430 mm
Frame length	2730 mm
Frame width	2300 mm
Number of beams	6 pcs.
Number of heads	66 pcs.
Installed power	2 x 2,2 kW – top beam 4 x 3,0 kW – middle and bottom beams

Additional information

Ilość belek	6 pcs.
Długość skubania	2430 mm
Moc zainstalowana	0 kW – mid and lower beam 380 V, 2 kW- upper beam 4 x 3, 2 x 2
Szerokość ramy	2300 mm
Ilość głowic skubiących	66 pcs.
Długość ramy	2730 mm
