Product description

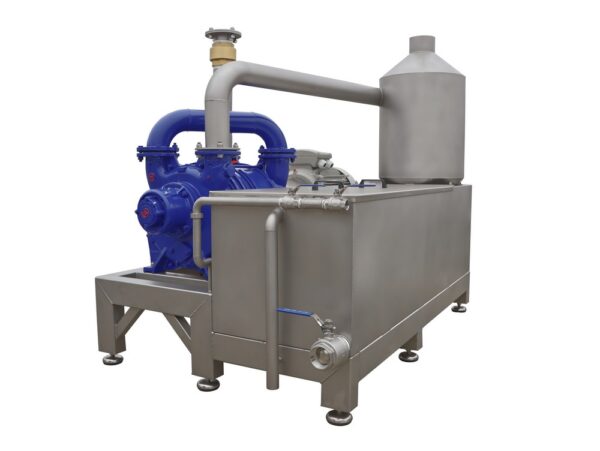

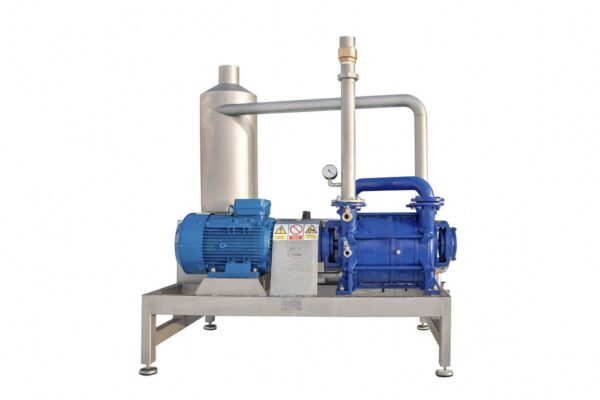

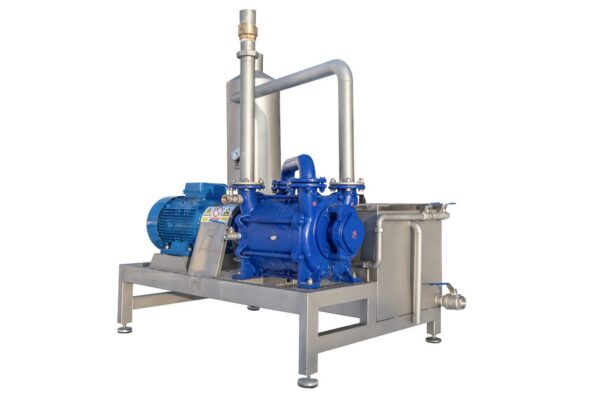

A liquid-circulating vacuum pump is part of a vacuum plant that is used for the pneumatic transport of slaughter waste, obtained as a result of the technological process of slaughtering and evisceration (viscera, paws, lungs, etc.).

OPERATION

The vacuum pump and the water tank are adapted to work in a complex system with the supply of water, when part of it returns to the pump and the part needed to maintain the correct level is supplemented with fresh water from the water supply system. The vacuum pump and the water tank are mounted on a single, compact base, which, when in operation, ensures that the correct water level is maintained, i.e. at the height of the impeller axis of the pump and the overflow pipe of the tank.

ADVANTAGES

– Up to 7500 pcs/h of one piece
– Possibility to transport solid particles

TECHNICAL DATA
Pump type	75 m3/h	200 m3/h	300 m3/h	500 m3/h	700 m3/h
Installed power	2,2 / 3,0 kW	5,5 kW	7.5 kW	15 kW	22 kW
Voltage and frequency Electricity supply			3 x 400 V 50 Hz
