ABDOMINAL DISSECTOR

ABDOMINAL DISSECTOR

Contact us to inquire about this product

If you would like to learn more about the offer or check availability, please contact our sales department:

📞 Phone: +48 (44) 647 61 74
👉 Extension numbers: 222, 223, 225
📧 E-mail: sales@szlachetstal.pl

You can also use the form below — our advisors will respond to your inquiry as quickly as possible.

Fill in the form

Product description

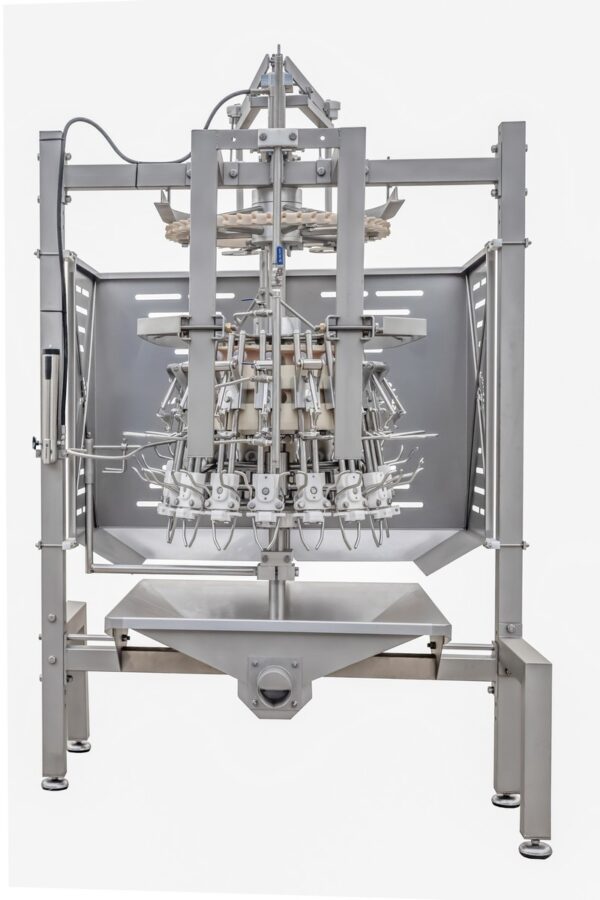

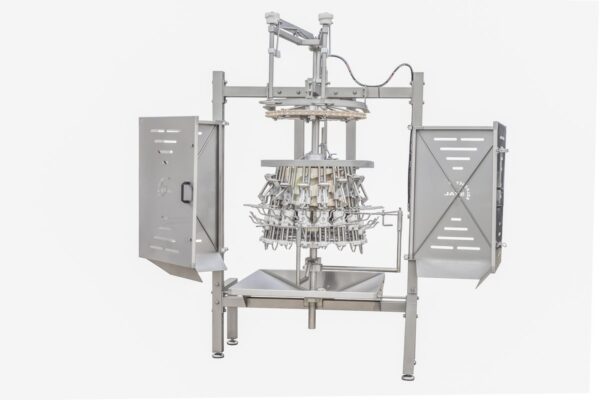

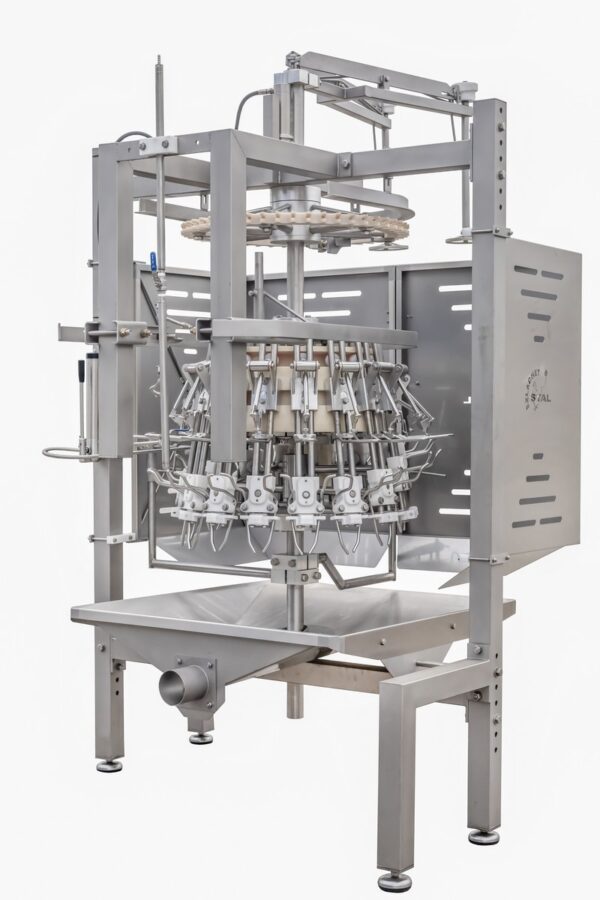

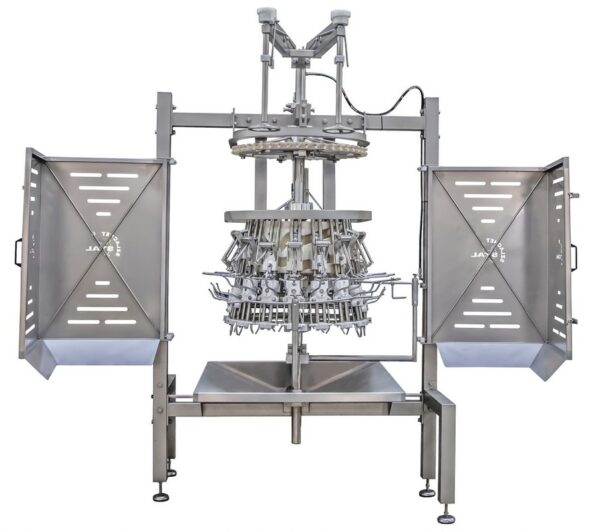

The machine is used to automatically cut the skin from the steak to the breastbone, starting from the hole made by the steakhouse. The machine is placed second in the evisceration line after the steakhouse.

OPERATION

The carcasses are fed into the machine facing the chest outwards and the back towards the centre of the machine. The machine is a carousel type, driven by an overhead conveyor. The knife unit, equipped with an exceptionally sharp knife, ensures a uniform and clean cut. The knife holder is designed in such a way that the entrails are pushed out of the cutting line, preventing contamination. The cutting heads are washed and cleaned after each circular movement.

BENEFITS

-High operating efficiency
-Maintenance
-Non-corrosive materials used in the production of the automat

TECHNICAL DATA

Variant	Capacity pcs/hour	Number of sections	Stirrup distribution inch	Weight kg
AR 9/8	4000	9	8	555
AR 10/6	4000-5000	10	6	555
AR 12/8	6000	12	8	555
AR 16/6	8000	16	6	555
