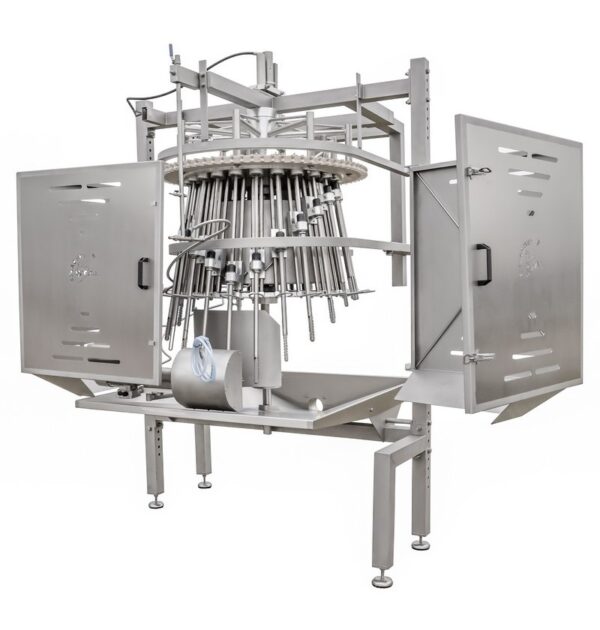

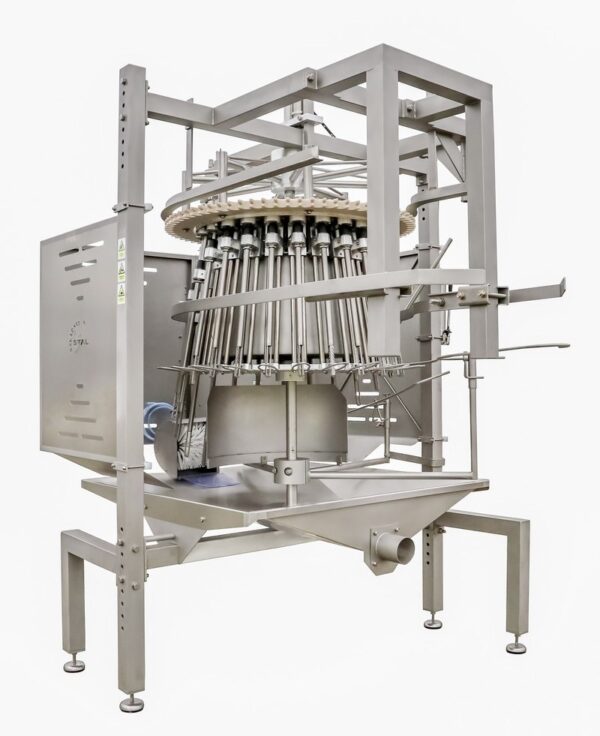

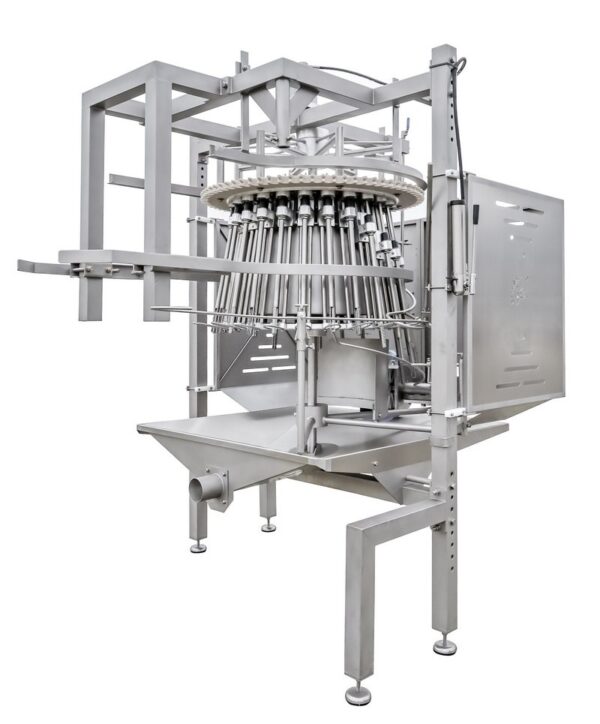

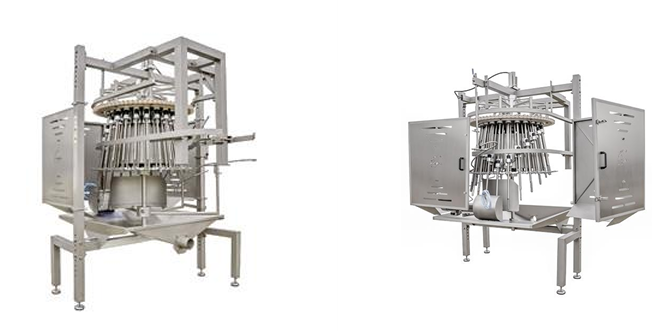

AUTOMATIC CROPPING MACHINE

Contact us to inquire about this product

If you would like to learn more about the offer or check availability, please contact our sales department:

📞 Phone: +48 (44) 647 61 74
👉 Extension numbers: 222, 223, 225
📧 E-mail: sales@szlachetstal.pl

You can also use the form below — our advisors will respond to your inquiry as quickly as possible.

Fill in the form

Category: EVISCERATION

Description
Zapytaj o produkt

Product description

The device is used for automatic cleaning of dewlap skin inside the chicken. The machine works properly with a carcass whose weight is in the range: 1.6-3.5 kg.

OPERATION

Carcasses enter the device with their backs towards the inside of the device. The guiding rail, placed on the lower guide inserts chickens into the leg guide, where they are fixed. The cleaning mandrel is inserted into the chicken with the help of a slider block. Rotation of the mandrel begins when it enters the chicken and continues until it reaches the throat. Under the chicken, the cropping mandrel is cleaned with a brush, while still rotating. After cleaning, the rotation stops and the cleaning mandrel is removed from the chicken.

ADVANTAGES

High operation effectiveness
Maintenance-free
Non-corrosive materials

TECHNICAL SPECIFICATION

Variant	Capacity pcs/hour	Cropping sections quantity	SHackle distance in inches	Weight kg
AW 12/8	4000	12	8	525
AW 16/6	4000-5000	16	6	525
AW 18/8	6000	18	8	700
AW 24/6	8000	24	6	700
