AUTOMATIC LUNG REMOVER

Contact us to inquire about this product

If you would like to learn more about the offer or check availability, please contact our sales department:

📞 Phone: +48 (44) 647 61 74
👉 Extension numbers: 222, 223, 225
📧 E-mail: sales@szlachetstal.pl

You can also use the form below — our advisors will respond to your inquiry as quickly as possible.

Fill in the form

Product description

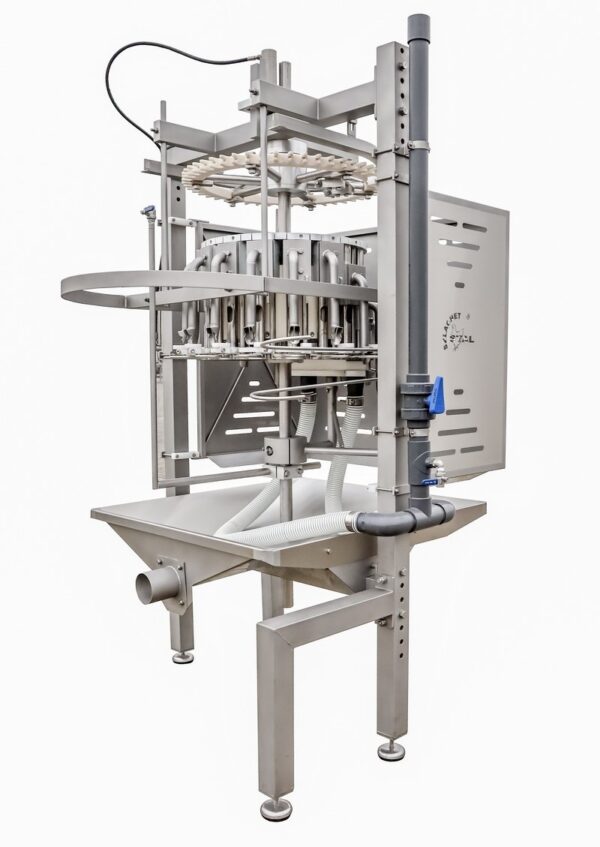

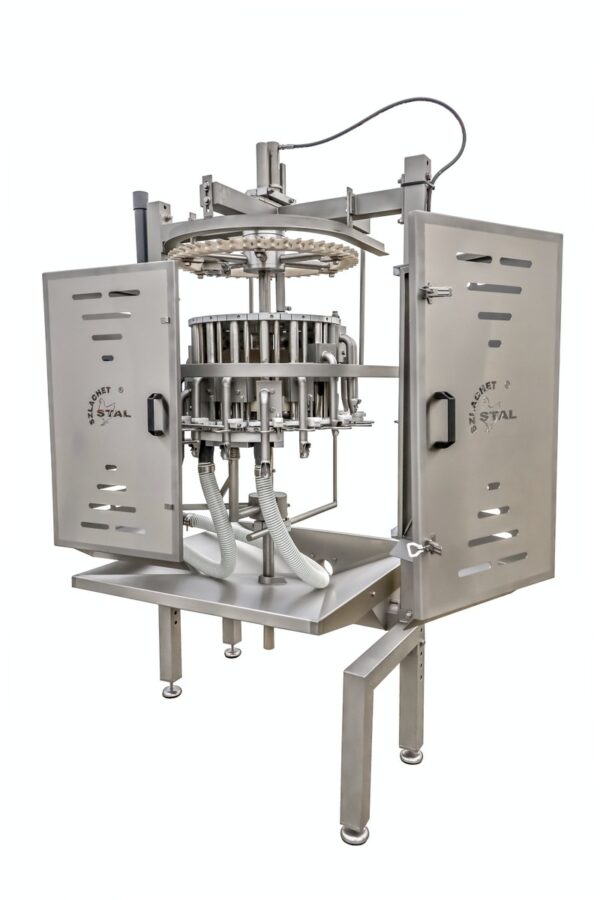

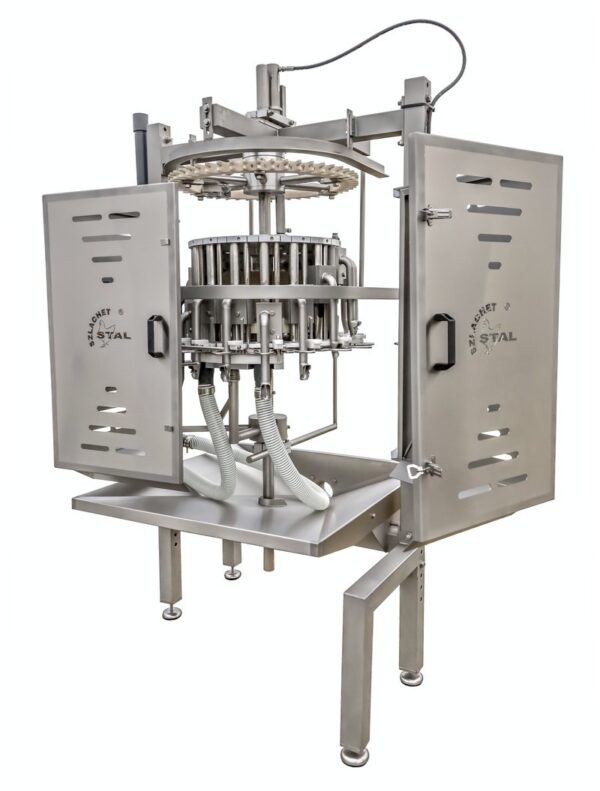

The device is designed for automatic removal of lungs from eviscerated chicken carcasses. The machine works properly with a carcass whose weight is in the range: 1.6-3.5 kg.

OPERATION

Carcasses enter the device with their backs towards the inside of the device. The guiding rail, mounted to the lower guide, moves chicken legs towards the vacuum lock, and then the vacuum sliding device is shifted downwards along with the sliding block, which activates the vacuum system. It means that if there are no chickens inside the hoop, negative pressure is not applied. The sliding block introduces vacuum hose into the carcass. The vacuum system ensures that the vacuum device is not activated until the end of the suction hose is inside the carcass. Lungs are sucked out of the chicken and sent to the collecting tank through the vacuum system.

ADVANTAGES

High operation effectiveness
Maintenance-free
Non-corrosive materials

TECHNICAL SPECIFICATION

Variant	Capacity pcs/h	Sections quantity	Shackle distance in inches	Weight kg
WP 9/8	4000	9	8	415
WP 10/6	4000-5000	10	6	415
WP 12/8	6000	12	8	525
WP 16/6	8000	16	6	525
