GIBLET SPIN CHILLER

Contact us to inquire about this product

If you would like to learn more about the offer or check availability, please contact our sales department:

📞 Phone: +48 (44) 647 61 74
👉 Extension numbers: 222, 223, 225
📧 E-mail: sales@szlachetstal.pl

You can also use the form below — our advisors will respond to your inquiry as quickly as possible.

Category:

Product description

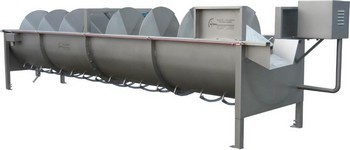

The giblet spin chiller is designed to reduce the temperature of hearts, livers, gizzards, necks and feet.

OPERATION

The parts to be chilled, depending on the location of the production line and the position of the chiller, fall directly from the line into the chiller (e.g. feet from the unloader or offal from a conveyor belt placed by the evisceration stand) or are manually fed into the chiller. Then, using a screw, they are moved to the end of the tank where they are automatically ejected to a prepared tank, a gutter, a conveyor belt or any other way of collection provided for in the technological design.
The length and width of the offal chiller is determined according to the capacity and size of the pieces to be chilled. Ice water is used for cooling. When tap water is used, crushed ice or scaly ice must be added during the chilling operation.

ADVANTAGES

  • The most effective method of lowering the temperature while maintaining all the qualities of the product.



TECHNICAL DATA
Length m Dependant on capacity
Diameter Ømm From 300 to 800 dependant on
capacity and the size of product
