AUTOMATIC FOOT CUTTER
Product description

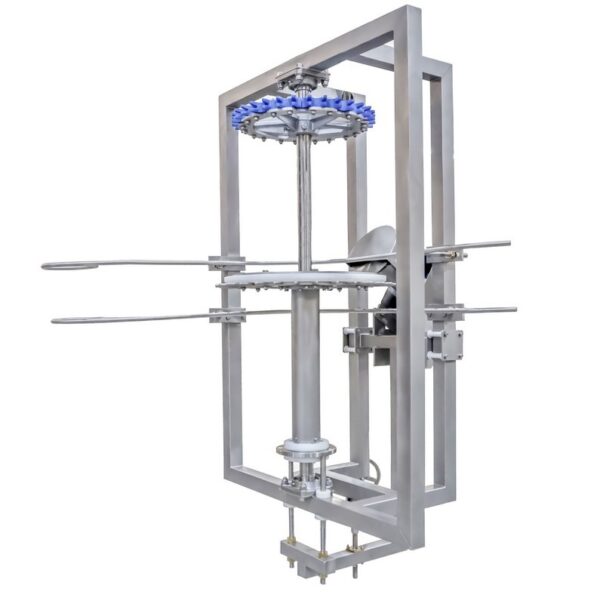

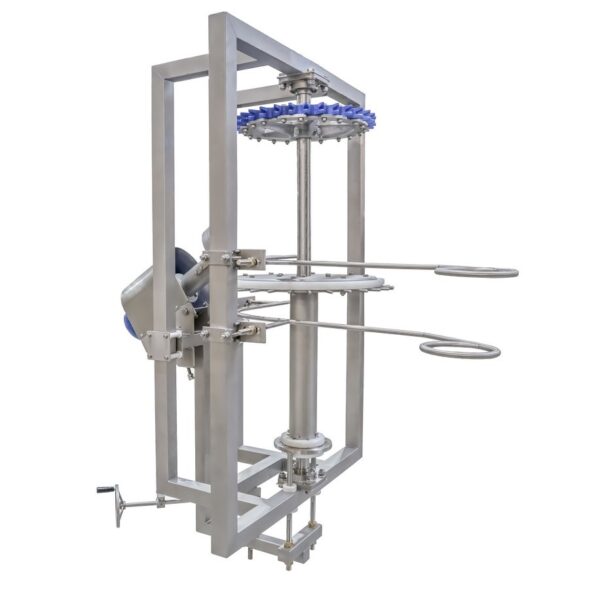

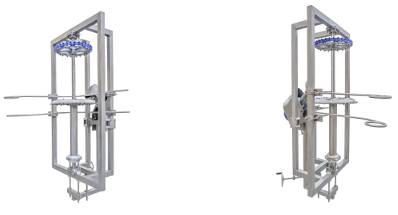

The automatic foot cutter is designed for cutting chicken feet in a poultry slaughtering line.
OPERATION
The cutter is suspended from the supporting structure of the overhead chain conveyor. Carcasses, transported in shackles of the conveyor, are placed on the wheel, which transfers them to the blade during rotation. The blade and transferring wheel adjustment system is designed so that it allows for adjusting the cut height to match bird size without the need to stop the slaughtering process. Another benefit of the system is the possibility of adjusting the blade so that the cut is always performed precisely at the knee joint.
ADVANTAGES
- High cutting effectiveness
- A simple and reliable adjustment method allows for precise cut across the line of joint.
TECHNICAL SPECIFICATION |
||||
|
Additional information
| Wymiary gabarytowe: | L= 1100 mm W= 1600 mm H=1820 mm Weight= 205 kg |
|---|---|
| Wydajność | Up to 9000 pcs/h |
Related products
-
SUSPENDED FOOT CUTTER
The suspended foot trimmer is used to trim the feet of hens and chickens in the poultry slaughter line. OPERATION The fixed… -
COMPACT CONTAINER SLAUGHTERHOUSE
Sample specification for equipment with a capacity of 500 chickens per hour 1. Overhead chain conveyor 2. Water-bath stunner 3. Bleeding trough… -

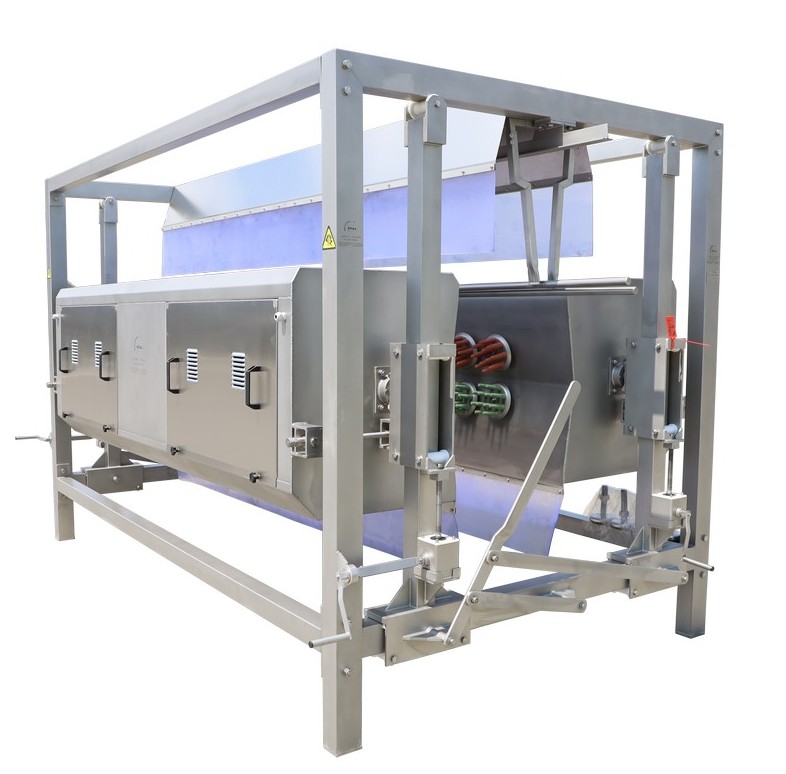

2 AND 3-ROWS IN-LINE PLUCKER
