CARCASS REHANGER
Product description

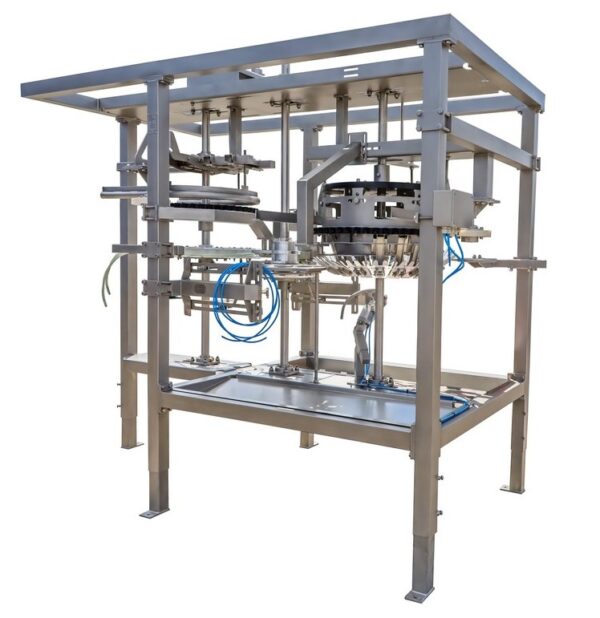

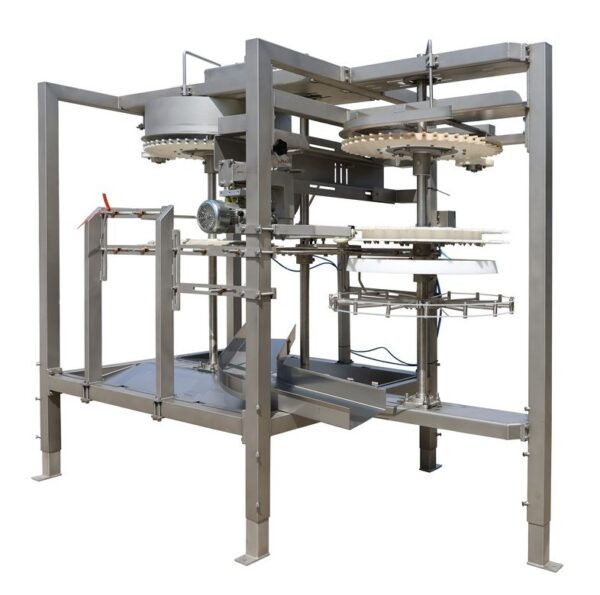

The carcass rehanger is designed for automatic cutting of feet and rehanging carcasses from the slaughtering line to the evisceration line. The chicken weight range is 800 g to 2500 g, but it must be kept in mind that for proper functioning of the rehanger the batch weight range must be balanced.
OPERATION
The slaughtering line and the evisceration line shafts are fitted with transmission and rotation generator, which are connected with the electronic control system of the machine for synchronising speeds of both lines. The rehanger is directly connected with and powered by both the slaughtering line and the evisceration line, whose speeds are synchronised by the electronic control system. Chickens enter the rehanger from the slaughtering line. Then the cutter automatically cuts their feet, which releases them from the slaughtering line. The central shaft transfers them to the evisceration line.
TECHNICAL SPECIFICATION |
||||||
|
Additional information
| Wymiary gabarytowe: | H=2200 mm, L=2850mm, W=1490 mm |
|---|---|
| Moc zainstalowana | 2 kW, Cutting off paws 2 |
| Masa | 910 kg |
