AUTOMATIC NECK REMOVER

Contact us to inquire about this product

If you would like to learn more about the offer or check availability, please contact our sales department:

📞 Phone: +48 (44) 647 61 74
👉 Extension numbers: 222, 223, 225
📧 E-mail: sales@szlachetstal.pl

You can also use the form below — our advisors will respond to your inquiry as quickly as possible.

Fill in the form

Product description

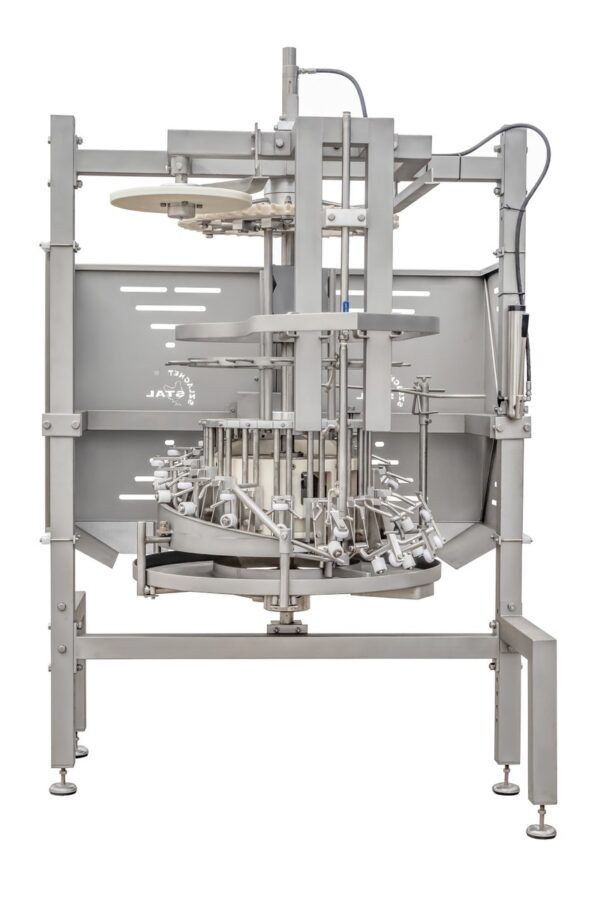

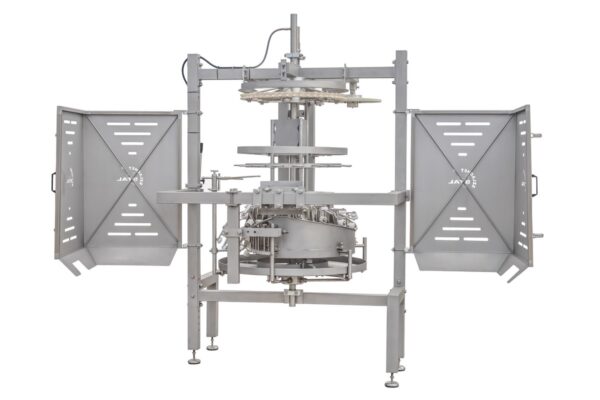

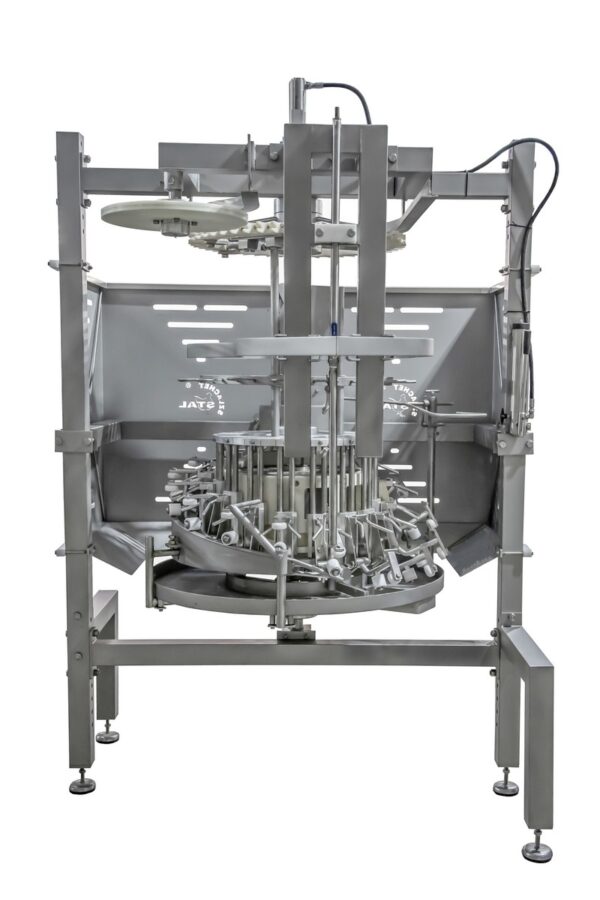

The device is designed for automatic separation and removal of necks from carcasses. The machine is placed in the evisceration line, after the automatic cropping machine. The machine works properly with a carcass whose weight is in the range: 1.6-3.5 kg.

OPERATION

Carcasses enter the machine with their breasts outside and their backs turned towards the centre of the machine. The machine is of carousel type, driven by the overhead conveyor. The neck separation and removal system operates on sliding blocks which move vertically along the bars mounted to the upper and lower plates of the automaton. Rollers which guide the neck separation and removal system move along a specially shaped track.

ADVANTAGES

High operation effectiveness
Maintenance-free
Non-corrosive materials

TECHNICAL SPECIFICATION

Variant	Capacity pcs/hour	Sections quantity	Shackle distance in inches	Weight kg
AWS 9/8	4000	9	8	450
AWS 12/6	4000-5000	12	6	450
AWS 12/8	6000	12	8	510
AWS 16/6	8000	16	6	510
