Product description

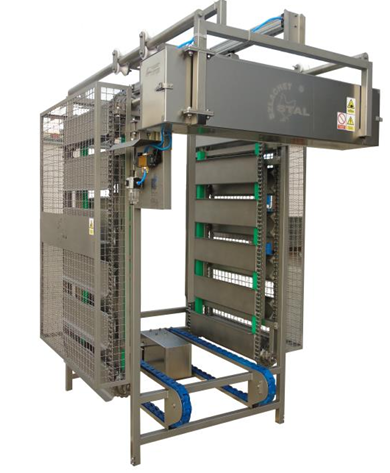

The device is designed for pushing a column of containers (4 or 5 levels) into a container in the container system for unloading poultry.

OPERATION

The stacker is designed to set the containers in posts of 4 or 5 pieces and then load them into the container. After washing in a washer, the containers are transported to the stacker by a chain conveyor. The container for the stacker must enter in a horizontal position, therefore, after leaving the washer, it must be rotated. After entering the stacker, the container is lifted by means of carriers to such a height that it can accept another one. After obtaining the desired number of containers (4 or 5 pcs.), the pneumatic actuator pushes the entire post into the container.

ADVANTAGES

Replacing the heavy operation of manually pushing containers through an automaton
Simple design for easy servicing
Additional control panel for manual control in case of jamming

TECHNICAL SPECIFICATION

Power	400 V; 50 Hz
Drive of the carrier mechanism	0,75 kW
Conveyor drive	0,37 kW
Ejection cylinder	rodless D40
Dimensions of the device: L x W x H	1 900 x 1400 x 2400 mm
