HORIZONTAL CHAIN CONVEYOR FOR CRATES

Contact us to inquire about this product

If you would like to learn more about the offer or check availability, please contact our sales department:

📞 Phone: +48 (44) 647 61 74
👉 Extension numbers: 222, 223, 225
📧 E-mail: sales@szlachetstal.pl

You can also use the form below — our advisors will respond to your inquiry as quickly as possible.

Fill in the form

Category: LIVE BIRD RECEPTION

Product description

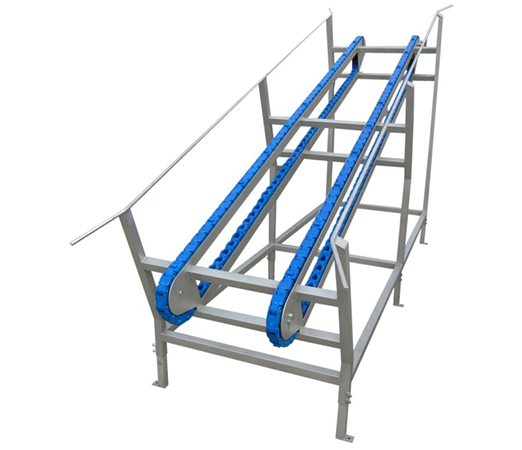

The horizontal chain conveyor is used to transport the containers in which the poultry is delivered to the slaughterhouse.

OPERATION

The conveyor consists of a driving segment, a tensioning segment and a straight element. The conveying element is a special double-row chain made of pl. The conveyor system is designed individually depending on the customer’s needs. It is possible to create many configurations, i.e. elevating conveyors, straight sections or curves.

ADVANTAGES

High load-bearing capacity
Long service life of conveyor components
Adjustable conveyor height
Individual design and execution

TECHNICAL SPECIFICATION

Length L	2-10 m
Width	700 mm customizable
Height	400 mm – 700 mm
Installed power	Depending on conveyor lenght from 0,12 kW to 1.5 kW

Additional information

Szerokość	700 mm or other
Wysokość	400 mm adjustable up to 700 mm
Moc zainstalowana	12 kW to 1, 5 kW, Depending on the length of the conveyor from 0
Długość L	From 2-10 m
