Category: KILLING AND PLUCKING EQUIPMENT

Product description

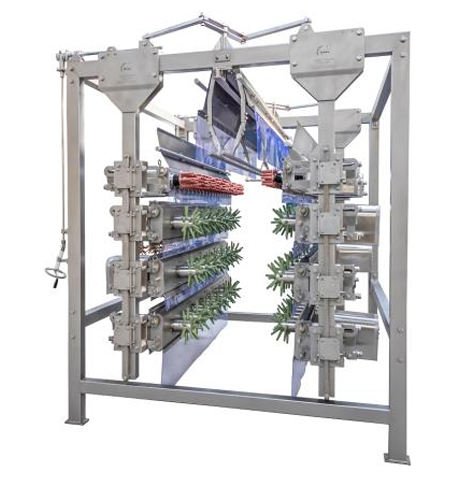

The linear beam plucker is used to remove feathers from the carcass of a hen turkey or a tom turkey.

OPERATION

The basic elements of the plucking machine’s structure are: a frame with posts (4 pcs.), 4 beams on both sides – symmetrically suspended on 2 posts. Two opposite upper beams are equipped with flat heads on which rubber fingers are mounted. The other beams are fitted with spatial heads. Horizontal adjustment of the beams is carried out using a system of levers and a worm gear driven electrically or manually. Vertical adjustment of pole mounted beams is carried out by means of worm gears and a vertical toothed bar mounted on the poles (there are 3 gears on one bar). The poultry, suspended on stirrups, is fed in between the rotating plucking discs by a chain conveyor. Both the angle of the beams and the distance of the rubber fingers from the plucked poultry are adjustable.

ADVANTAGES

Wide range of applications
Possibility of vertical adjustment of the plucking beams position
Possibility of adjusting the beam inclination angle and the distance between the plucking fingers and the bird carcass being processed

TECHNICAL SPECIFICATION

Plucking length	2800 mm
Frame length	3100 mm
Frame width	2300 mm
Number of beams	8 pcs
Number of heads	98 pcs
Installed power	16 x 2.2 kW – top beam 4 x 3,0 kW – middle and bottom beams

Additional information

Ilość belek	8 pcs.
Długość skubania	2800 mm
Moc zainstalowana	0 kW – middle and lower beam, 16 x 2, 380 V
Szerokość ramy	2300 mm
Ilość głowic skubiących	98 pcs.
Długość ramy	3100 mm
