ELECTRIC WATER BATH STUNNER

Contact us to inquire about this product

If you would like to learn more about the offer or check availability, please contact our sales department:

📞 Phone: +48 (44) 647 61 74
👉 Extension numbers: 222, 223, 225
📧 E-mail: sales@szlachetstal.pl

You can also use the form below — our advisors will respond to your inquiry as quickly as possible.

Category:

Product description

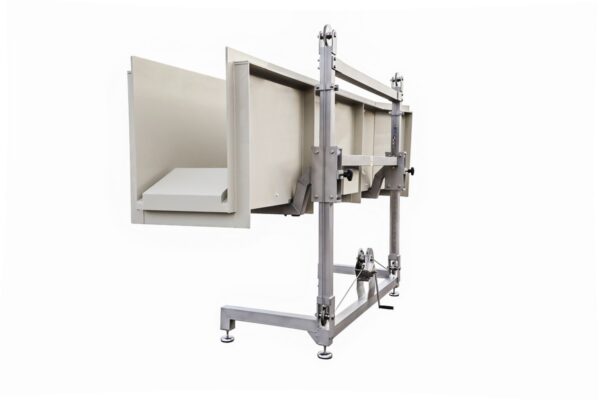

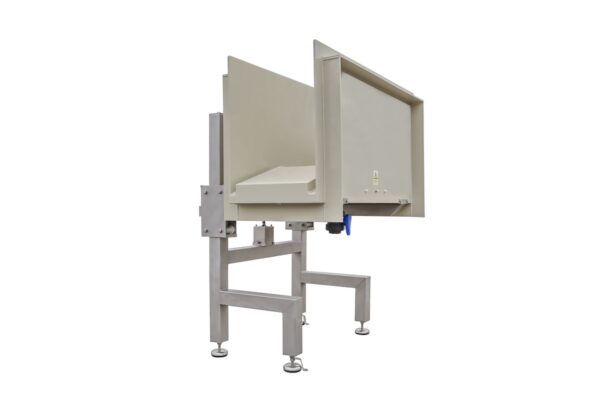

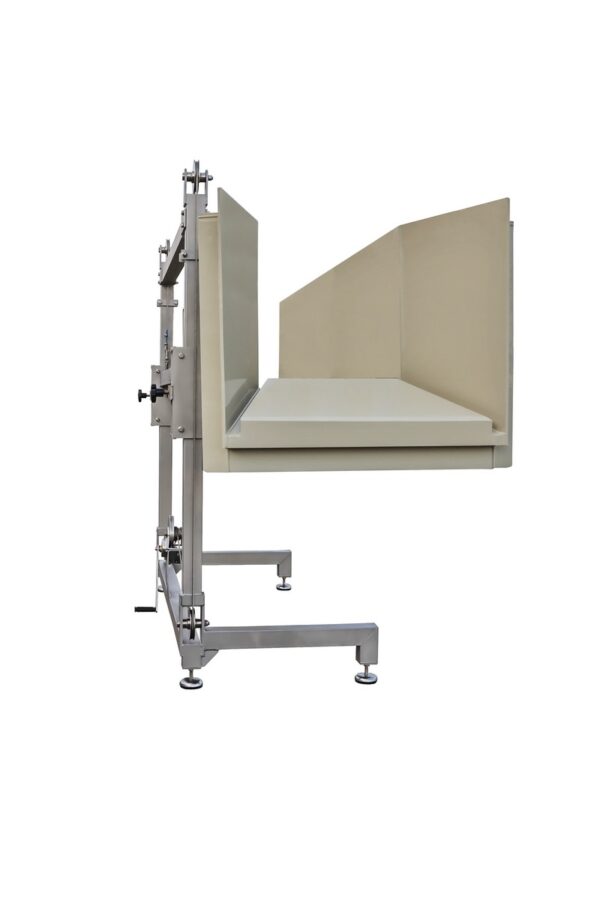

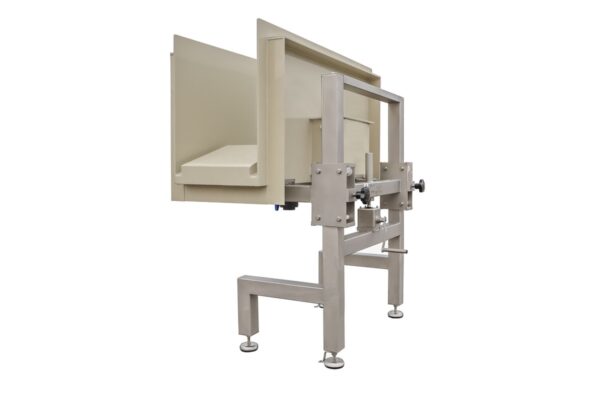

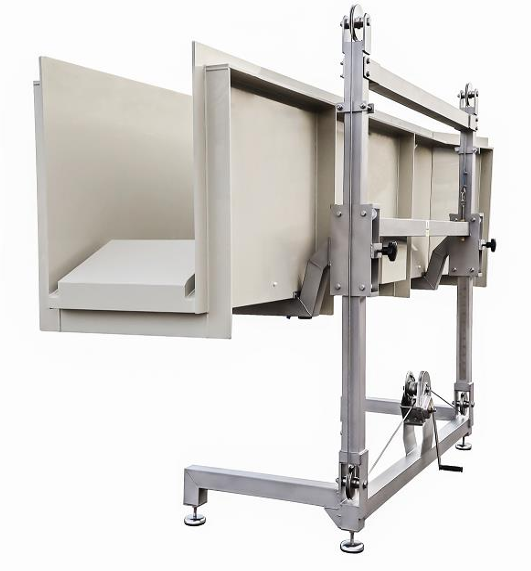

The device is used to stun poultry to be slaughtered using electric current. It guarantees a humane slaughter process.

OPERATION

Poultry destined for stunning are transported directly to the machine on the slaughter conveyor’s shackles.
Control cabinet – according to current requirements:

  • voltage adjustment in the range from 0 to 230 V
  • Frequency adjustment up to 800 Hz

The aforementioned parameters allow for a current of 0,125 A per bird in the device ( 0,15 A for turkey, 0,13 A for duck and goose).

ADVANTAGES

  • Records stunning parameters
  • Guarantee of humane slaughter of poultry in compliance with veterinary requirements
  • Simple design, easy maintenance
  • Possibility of adapting the stunner to any slaughter line, thanks to the height-adjustable device

TECHNICAL SPECIFICATION
Dimensions Length= depends on capacity and poultry size
Width= 400 (chicken), W=650 (turkey)
Height= adapted to the height of the shackles and the size of the poultry

Additional information

Wymiary gabarytowe:

W=650 (turkey) H= adapted to the height of the stirrups and the size of the poultry
