CONTAINER WASHER WITH SIEVE

Contact us to inquire about this product

If you would like to learn more about the offer or check availability, please contact our sales department:

📞 Phone: +48 (44) 647 61 74
👉 Extension numbers: 222, 223, 225
📧 E-mail: sales@szlachetstal.pl

You can also use the form below — our advisors will respond to your inquiry as quickly as possible.

Fill in the form

Category: LIVE BIRD RECEPTION

Description
Zapytaj o produkt

Product description

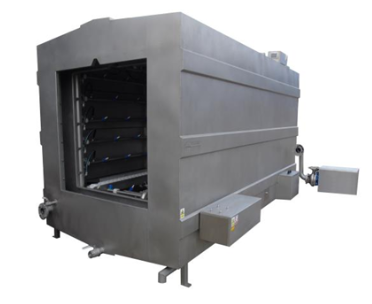

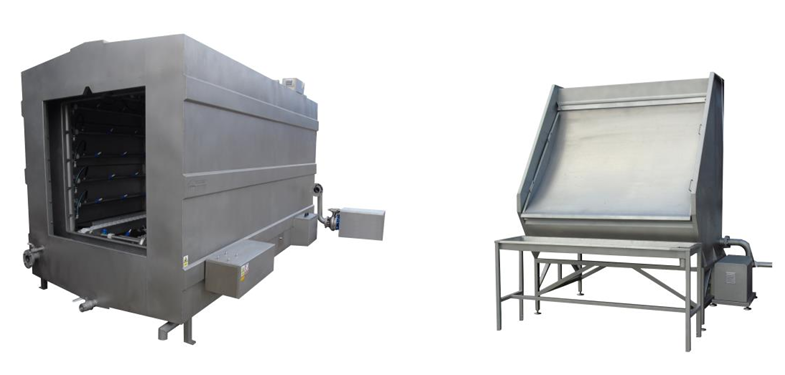

The device is designed for automatic washing of containers in the container poultry unloading system. The picture shows a container washer and a cooperating arc sieve.

OPERATION

After starting the system, the chain conveyor feeds the container emptied of containers into the washing chamber. In order to thoroughly wash the container, a kinematic system is installed in the washer with special nozzles with high flux energy installed. Water spraying is from above, below and from both sides of the container. Clean containers are transported to another chain conveyor located outside the washer. The water pumped by the pump from the tank, after the washing process, is directed to a slotted sieve by means of a special pump. The filtered water returns to the tank for reuse.

ADVANTAGES

Thorough cleaning of containers by using a movable nozzle system
Closed-loop cleaning – saving on water consumption

TECHNICAL SPECIFICATION

Power supplier	400 V; 50 Hz	Power of the pump supplying water to the washer	15 kW
Water tank capacity	700 l	Pump power supplying water to the sieve	7,5 kW
Spray pressure of washing manifolds	6 bar	Dimensions of the device
Total power	25 kW	Length	4 300 mm
Power of the chain conveyor drive	1,5 kW	Width	2 300 mm
Number of wash nozzles	96	Height	2 600 mm
