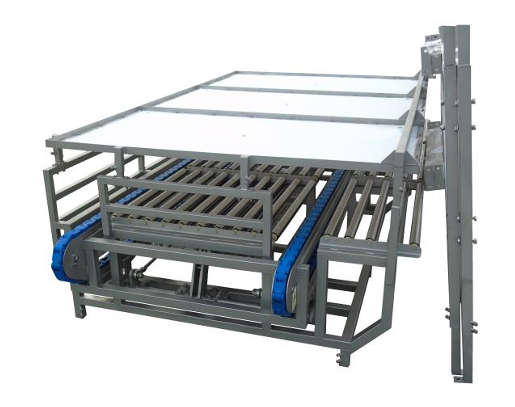

RECEIVING TABLE FOR MOTORIZED CONTAINER
Product description
The device is designed to collect containers immediately after pushing them out by the de-stacker in the container unloading system.
OPERATION
The receiving table is a conveyor that receives a whole row of containers as soon as they are pushed out by the depalletizer. It is constructed from gravity roller conveyors and a chain conveyor installed on a pneumatic actuator.
ADVANTAGES
-
The use of stainless steel rollers significantly extends their service life
-
Simple design for easy servicing
TECHNICAL SPECIFICATION
|
Power |
400 V/50 Hz |
|
Drive power |
0,75 kW |
|
Dimensions |
|
|
Length |
3 200 mm |
|
Width |
1 500 mm |
|
Height |
720 mm |
