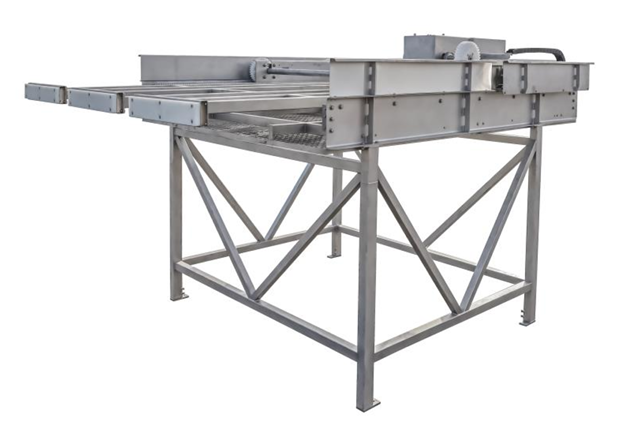

MECHANICAL CRATE DE-STACKER
Product description
The device is designed for pushing containers out of the container in the container system of unloading poultry.
OPERATION
The de-stacker is used to push live cages out of the container and feed them to double-row chain conveyors. The device pushes the frames in rows from each level of the container, starting from the lowest level. After pushing out the entire row of containers, the elevator or scissor lift, drops the container to the lower level and the next row is mechanically pushed out. It is assembled in the technological line of container livestock reception.
ADVANTAGES
-
Reliability through mechanical gear ratio on toothed bar
-
Simple design for easy servicing
-
Additional control panel for manual control in case of jamming
TECHNICAL SPECIFICATION
|
Power |
400 V/50 Hz |
|
Drive power |
2,2 kW |
|
Weight |
800 kg |
