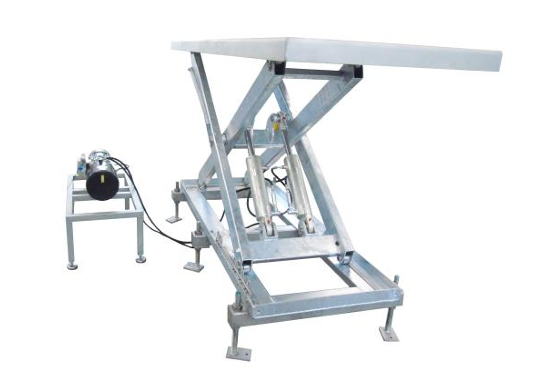

CONTAINER SCISSOR LIFT

Contact us to inquire about this product

If you would like to learn more about the offer or check availability, please contact our sales department:

📞 Phone: +48 (44) 647 61 74
👉 Extension numbers: 222, 223, 225
📧 E-mail: sales@szlachetstal.pl

You can also use the form below — our advisors will respond to your inquiry as quickly as possible.

Fill in the form

Category: LIVE BIRD RECEPTION

Description
Zapytaj o produkt

Product description

The device is designed for lifting containers in a container unloading system.

OPERATION

A single container with drawers drives onto a hydraulic lift. After reaching the appropriate position, the lift starts and begins to raise it to a height that allows pushing the containers out of the lower level of the container using a de stacker. After the de-stacker empties the entire row of containers, the lift leaves the container one level lower. The operation is repeated until the entire container is emptied of the containers. After completing all operations, the container leaves the device using a chain conveyor.

ADVANTAGES

Steel galvanized construction with increased strength
Simple design for easy servicing

TECHNICAL SPECIFICATION

Lifting capacity	2000 kg
Max. lifting height	1600 mm
Table dimensions	2500 x 900
Power supply type	mini supplier 8,3 l/min
Oil tank capacity	10 l
Motor supply voltage	3 x 400V; 50 Hz
Engine power	3 kW
Type of working medium	Viscosity hydraulic oil 20÷400 mm2/s
