Product description

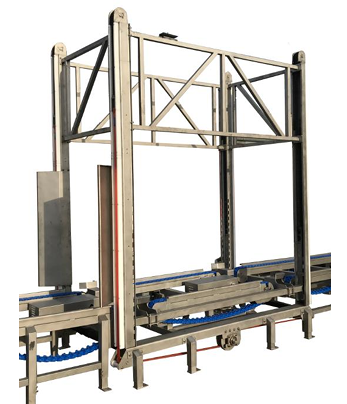

The device is designed for lifting containers in a container unloading system.

OPERATION

A single container with drawers enters the mechanical elevator. After reaching the appropriate position, special gripping arms slide into the side openings of the container and then raise it to a height that allows you to push the containers out of the lower level of the container using a de stacker. After the depalletizer empties a whole row of containers, the elevator leaves the container one level lower. The operation is repeated until the entire container is emptied of the containers. After completing all operations, the container leaves the window using a chain conveyor.

ADVANTAGES

Designed for high performance
Faster than a scissor conveyor
Simple design for easy servicing

TECHNICAL SPECIFICATION

Lifting capacity	1500 kg
Max. lifting range	1200 mm
Drive	5,5kW + 2,2kW
Gripper cylinder type	D80 skok 100
Supply voltage	3 x 400 V; 50 Hz
Dimensions : L x W x H	3360 mm x 2780 mm x 3950 mm
